MNPV6-Disco

MNPV6-Disco

Regular price
Sold out
Sale price
$385.25
Unit price
per

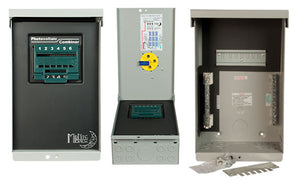

The MNPV6 Disco is very flexible. It is ETL listed for AC and DC. This allows you to configure it for several different uses. It will work with 1-6 of our 150 volt DC breakers. The combiner also works with 1 of our 600 volt DC breakers for a grid tie disconnect. You can also install a 240 volt AC breaker with the 600 volt DC breaker to make a complete disconnect for a grid tie inverter. Load Break rated. This configuration makes a compact Grid Tie disconnect for those applications where the built in switch won’t do the trick. We have 16 and 20 amp 600VDC breakers. We stock 120V and 240VAC breakers.

Depending upon the model number, you can use:
DC 600V (1 circuit Pos or Pos and Neg switched) OR DC 150v (6 Circuits) OR AC 120v (6 circuits) use the Part no. MNPV6-Disco combiner
DC 300V (3 circuits) Part #MNPV6-250-Disco combiner
AC 240v 40 amps (3 circuits) Part #MNPV6-AC Micro-Disco combiner

AC and DC can be installed in the same box!
Example:
600Vdc 20 amp PV in and 40 amp 240Vac Inverter output

Enclosure only
