- Comprehensive battery enclosure solution with cell interconnect
- String overcurrent protection and disconnects
- Crafted of powder coated aluminum
- Supports 48 volt systems
- Durable appearance even in challenging environments

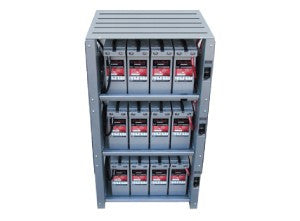

The OutBack Integrated Battery Rack system is a comprehensive battery enclosure solution with cell interconnects, cabling, and series string overcurrent protection and disconnects included, making it easy to order and install.
All electrical connections are made at the factory and ship fully assembled with the exception of the batteries, which can be quickly added and connected on the jobsite.
Unlike typical steel racks, the OutBack design is crafted of powder coated aluminum, resulting in a rack that maintains a clean, durable appearance even in challenging environments while weighing less than 90 pounds. The 2-shelf IBR-2 is sized to fir under an OutBack Radian inverter/charger to reduce system component "clutter" and make the best use of installation space. Clear covers allow for visual inspection while providing additional protection for the batteries and electrical connections. The IBR-3-48-175 can accommodate up to twelve (12) EnergyCell batteries, while the IBR-2-48-175 can accomodate up to eight (8) EnergyCell batteries. Both models support 48 volt systems.
Integrated Battery Rack System IBR-3-48-175 Dimensions (HxWxL) 52.2” x24”x 25.5” / 68.58cmx64.77cmx132.58cm Weight 86.0 lbs (39.0 kg) without batteries Physical 0.125-inch thick aluminum enclosure with FLEXware silver finish; plated copper bus bars and polycarbonate covers. Ships fully assembled (except for batteries) Capacity Up to twelve (12) EnergyCell RE batteries Systems Supported 48 volts Available Batteries EnergyCell 200RE, EnergyCell 170RE, EnergyCell 200GH
