GTFX3048LA

GTFX3048LA

Options Available:

Product Highlights

  • Sine wave output
  • Intelligent battery charging
  • Sealed chassis for harsh environments
  • Corrosion-resistant internal components
  • Standard 5-year warranty

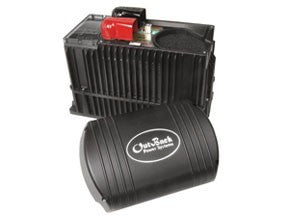

OutBack Power’s true sine wave grid-interactive inverter/charger is a complete power solution.

It incorporates a DC to AC sine wave inverter, battery charger and AC transfer switch housed within a die-cast aluminum chassis. The GTFX and GVFX Series Inverter/Charger gives you the ability to sell solar, wind or hydro power back to the utility grid while providing instantaneous backup power in the event of a utility outage.

Our built in transfer switch automatically disconnects your loads from the utility grid and powers them from the inverter in the event of an outage, allowing you to continue using your solar and battery backup power, unlike traditional grid-tie systems. Intelligent multi-stage battery charging prolongs the life of your batteries and built-in networked communications enables you to stack up to two units while simultaneously communicating with other OutBack Power components. The exclusive modular system architecture means that increased power output is just an additional inverter/charger away.

Our GTFX series uses a sealed chassis that can operate in the harshest environment conditions such as a high humidity and corrosive salt air while the GVFX series uses a vented chassis with “bug proof” screened openings that allow high output AC power in various operating conditions. OutBack Power inverter/chargers are the only choice when you need a true sine wave, powerful, modular and reliable power solution for your home, business or extreme application.

Technical Specifications & Variants


  •   Sealed Models Vented Models
    GTFX2524LA GTFX3048LA GVFX3524LA GVFX3648LA
    Nominal DC Input Voltage 24 VDC 48 VDC 24 VDC 48 VDC
    Continuous Power Rating at 25° C 2500 VA 3000 VA 3500 VA 3600 VA
    AC Voltage/Frequency 127 VAC 60 Hz 127 VAC 60 Hz 127 VAC 60 Hz 127 VAC 60 Hz
    Continuous AC RMS Output at 25° C 19.7 amps AC 23.6 amps AC 27.6 amps AC 28.4 amps AC
    Full Idle Power ≈ 23 Watts ≈ 20 Watts ≈ 23 Watts ≈ 20 Watts
    Search ≈ 6 Watts ≈ 6 Watts ≈ 6 Watts ≈ 6 Watts
    Typical Efficiency 92% 93% 92% 93%
    Inverting Total Harmonic Distortion 2% 2% 2% 2%
    Selling 5% 5% 5% 5%
    Output Voltage Regulation ± 2% ± 2% ± 2% ± 2%
    Peak Maximum Output Current 70 amps AC 70 amps AC 70 amps AC 70 amps AC
    RMS 50 amps AC 50 amps AC 50 amps AC 50 amps AC
    Surge AC Overload Capability 6000 VA 6000 VA 6000 VA 6000 VA
    5 Second 4800 VA 4800 VA 5000 VA 5000 VA
    30 Minutes 3200 VA 3200 VA 4000 VA 4000 VA
    AC Input Current Maximum 60 amps AC 60 amps AC 60 amps AC 60 amps AC
    AC Input Voltage Range (MATE Adjustable) 100 to 140 VAC 100 to 140 VAC 100 to 140 VAC 100 to 140 VAC
    AC Input Frequency Range 58 to 62 Hz 58 to 62 Hz 58 to 62 Hz 58 to 62 Hz
    DC Input Range 21.0 to 34.0 VDC 42.0 to 68.0 VDC 21.0 to 34.0 VDC 42.0 to 68.0 VDC
    Continuous Battery Charge Output 55 amps DC 35 amps DC 85 amps DC 45 amps DC
    Temperature Range Rated 0°C to 50°C (power derated above 25°C) 0°C to 50°C (power derated above 25°C)
    Maximum -25°C to 60°C -25°C to 60°C
    Warranty Standard 5 year Standard 5 year
    Unit Weight 56 lbs (25 kg) 61 lbs (28 kg)
    Shipping 67 lbs (30 kg) 67 lbs (31 kg)
    Unit Dimensions (H x W x L) 13 x 8.25 x 16.25" (33 x 21 x 41 cm) 12 x 8.25 x 16.25" (30 x 21 x 41 cm)
    Shipping 21.75 x 13 x 22" (55 x 33 x 56 cm) 21.75 x 13 x 22" (55 x 33 x 56 cm)
