GTFX2348E

GTFX2348E

Options Available:

Product Highlights

  • Sine wave output
  • Intelligent battery charging
  • Up to 15 kVA
  • Sealed chassis for harsh environments
  • Corrosion-resistant internal components

The OutBack International Series true sine wave grid-interactive inverter/charger is a complete power solution.

The International Series is designed for use in 50 Hz countries that have utility grids with nominal AC voltages of 230 VAC / 50Hz. For areas that frequently experience high or low power conditions such as surges, spikes or brownouts, or have trouble syncing to the utility grid, the International Series grid reconnect timers have been shortened to reduce overall system downtime and improve system functionality.

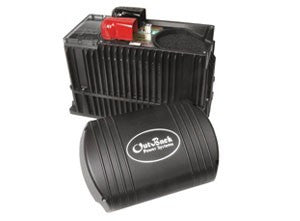

Incorporating a DC to AC sine wave inverter, battery charger and AC transfer switch housed within a die-cast aluminum chassis, the International Series GTFX and GVFX Inverter/Chargers give you the ability to sell solar, wind or hydro power back to the utility grid while providing instantaneous backup power in the event of a utility outage.

Our built-in transfer switch automatically disconnects your loads from the utility grid and powers them from the inverter in the event of an outage, allowing you to continue using your solar and battery back-up power, unlike traditional grid-tie systems. Intelligent multi-stage battery charging prolongs the life of your batteries and built-in networked communications allow for simultaneous communications of up to 10 OutBack Power components within the system. The exclusive modular system architecture means that increased power output is just an additional inverter/charger away. Our International Series GTFX uses a sealed chassis that can operate in the harshest environmental conditions such as high humidity and corrosive salt air while the International Series GVFX uses a vented chassis with “bug-proof” screened openings that allow high output AC power for various operating conditions.

OutBack Power inverter/chargers are the only choice when you need a true sine wave, powerful, modular and reliable power solution for your home, business or extreme application.

Technical Specifications & Variants


  •   Sealed Models Vented Models
    GTFX2012E GTFX2024E GTFX2348E GVFX2612E GVFX3024E GVFX3048E
    Nominal DC Input Voltage 12 VDC 24 VDC 48 VDC 12 VDC 24 VDC 48 VDC
    Continuous Power Rating at 25° C 2000 VA 2000 VA 2300 VA 2600 VA 3000 VA 3000 VA
    AC Voltage/Frequency 230VAC 50 Hz 230VAC 50 Hz 230VAC 50 Hz 230VAC 50 Hz 230 VAC 50 Hz 230 VAC 50 Hz
    Continuous AC RMS Output at 25° C 8.7 amps AC 8.7 amps AC 10.0 amps AC 11.3 amps AC 13.0 amps AC 13.0 amps AC
    Full Idle Power ~ 20 Watts ~ 20 Watts ~23W ~20W ~ 20 Watts ~23W
    Search ~ 6 Watts ~ 6 Watts ~6W ~6W ~ 6 Watts ~6W
    Typical Efficiency 92% 92% 92% 90% 92% 93%
    Inverting Total Harmonic Distortion 2% 2% 2% 2% 2% 2%
    Selling 5% 5% 5% 5% 5% 5%
    Output Voltage Regulation ± 2% ± 2% ± 2% ± 2% ± 2% ± 2%
    Peak Maximum Output Current 280 amps AC 35 amps AC 35 amps AC 28 amps AC 35 amps AC 35 amps AC
    RMS 20 amps AC 25 amps AC 25 amps AC 20 amps AC 25 amps AC 25 amps AC
    Surge AC Overload Capability 4600 VA 5750 VA 5750 VA 4600 VA 5750 VA 5750 VA
    5 Second 4000 VA 4800 VA 4800 VA 4000 VA 4800 VA 4800 VA
    30 Minutes 2500 VA 3100 VA 3100 VA 3100 VA 3300 VA 3300 VA
    AC Input Current Maximum 30 amps AC 30 amps AC 30 amps AC 30 amps AC 30 amps AC 30 amps AC
    AC Input Voltage Range (MATE Adjustable) 160 to 300 VAC 160 to 300 VAC 160 to 300 VAC 160 to 300 VAC 160 to 300 VAC 160 to 300 VAC
    AC Input Frequency Range 44 to 56 Hz 44 to 56 Hz 44 to 56 Hz 44 to 56 Hz 44to 56 Hz 44 to 56 Hz
    DC Input Range 10.5 to 17.0 VDC 21.0 to 34.0 VDC 42.0 to 68.0 VDC 10.5 to 17.0 VDC 21.0 to 34.0 VDC 42.0 to 68.0 VDC
    Continuous Battery Charge Output 100 amps DC 55 amps DC 35 amps DC 120 amps DC 85 amps DC 45 amps DC
    Temperature Range Rated 0°C to 50° (power derated above 25°C) 0°C to 50° (power derated above 25°C)
    Maximum -25°C to 60° -25°C to 60°
    Warranty Standard 5 year Standard 5 year
    Unit Weight 62 lbs (29 kg) 61 lbs (28 kg)
    Shipping 67 lbs (31 kg) 64 lbs (29 kg)
    Unit Dimensions (H x W x L) 13 x 8.25 x 16.25" (33 x 21 x 41 cm) 12 x 8.25 x 16.25" (30 x 21 x 41 cm)
    Shipping 21.75 x 13 x 22" (55 x 33 x 56 cm) 21.75 x 13 x 22" (55 x 33 x 56 cm)
