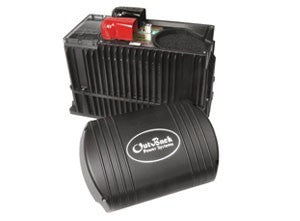

FX2348EMT

FX2348EMT

Options Available:

Product Highlights

  • True sine wave output
  • Intelligent battery charging
  • Modular stackable design
  • Corrosion-resistant internal components
  • Weather-resistant sealed chassis
  • Standard 5-year warranty

OutBack's Mobile and Marine inverter/charger models provide the high performance and reliability you need no matter where your travels take you.

Our die-cast metal construction allows mounting in any position, even upside down. The required AC input neutral/ground switching is taken care of by a fully integrated 30 amp AC transfer switch for shore chord or generator hook-up. Three circuit boards and a simple design make field servicing the unit easy no matter where you are. Rigorous testing at the factory ensures that each inverter/charger works the first time as well as for many years to come.

Technical Specifications & Variants


  •   Sealed Models Vented Models
    FX2012EMT FX2024EMT FX2348EMT VFX2612EM VFX3024EM VFX3048EM
    Nominal DC Input Voltage 12 VDC 24 VDC 48 VDC 12 VDC 24 VDC 48 VDC
    Continuous Power Rating at 25° C 2000 VA 2000 VA 2300 VA 2600 VA 3000 VA 3000 VA
    AC Voltage/Frequency 230 VAC 50 Hz 230 VAC 50 Hz 230 VAC 65 Hz 230 VAC 50 Hz 230 VAC 50 Hz 230 VAC 50 Hz
    Continuous AC RMS Output at 25° C 8.7 amps AC 8.7 amps AC 10.0 amps AC 11.3 amps AC 13.0 amps AC 13.0 amps AC
    Full Idle Power ≈ 20 Watts ≈ 20 Watts ≈ 23 Watts ≈ 20 Watts ≈ 20 Watts ≈ 23 Watts
    Search ≈ 6 Watts ≈ 6 Watts ≈ 6 Watts ≈ 6 Watts ≈ 6 Watts ≈ 6 Watts
    Typical Efficiency 90% 92% 93% 90% 92% 93%
    Typical Total Harmonic Distortion 2% 2% 2% 2% 2% 2%
    Maximum 5% 5% 5% 5% 5% 5%
    Output Voltage Regulation ± 2% ± 2% ± 2% ± 2% ± 2% ± 2%
    Peak Maximum Output Current 28 amps AC 35 amps AC 35 amps AC 28 amps AC 35 amps AC 35 amps AC
    RMS 20 amps AC 25 amps AC 25 amps AC 20 amps AC 25 amps AC 25 amps AC
    Surge AC Overload Capability 4600 VA 5750 VA 5750 VA 4600 VA 5750 VA 5750 VA
    5 Second 4000 VA 4800 VA 4800 VA 4000 VA 4800 VA 4800 VA
    30 Minutes 2500 VA 3100 VA 3100 VA 3100 VA 3300 VA 3300 VA
    AC Input Current Maximum 30 amps AC 30 amps AC 30 amps AC 30 amps AC 30 amps AC 30 amps AC
    AC Input Voltage Range (MATE Adjustable) 160 to 300 VAC 160 to 300 VAC 160 to 300 VAC 160 to 300 VAC 160 to 300 VAC 160 to 300 VAC
    AC Input Frequency Range 44.0 to 56.0 Hz 44.0 to 56.0 Hz 44.0 to 56.0 Hz 44.0 to 56.0 Hz 44.0 to 56.0 Hz 44.0 to 56.0 Hz
    Neutral-Ground Bond Switching Yes Yes Yes Yes Yes Yes
    DC Input Range 10.5 to 17.0 VDC 21.0 to 34.0 VDC 42.0 to 68.0 VDC 10.5 to 17.0 VDC 21.0 to 34.0 VDC 42.0 to 68.0 VDC
    Continuous Battery Charge Output 100 amps DC 55 amps DC 35 amps DC 120 amps DC 85 amps DC 45 amps DC
    Temperature Range Rated 0°C to 50°C (power derated above 25°C) 0°C to 50°C (power derated above 25°C)
    Maximum -25°C to 60°C -25°C to 60°C
    Warranty Standard 5 year Standard 5 year
    Unit Weight 62 lbs (29 kg) 61 lbs (28 kg)
    Shipping 67 lbs (31 kg) 67 lbs (31 kg)
    Unit Dimensions (H x W x L) 13 x 8.25 x 16.25" (33 x 21 x 41 cm) 12 x 8.25 x 16.25" (30 x 21 x 41 cm)
    Shipping 21.75 x 13 x 22" (55 x 33 x 56 cm) 21.75 x 13 x 22" (55 x 33 x 56 cm)
